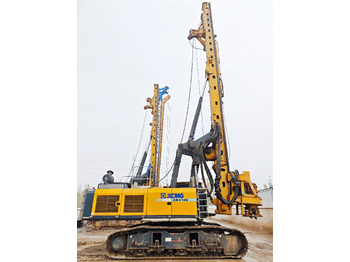

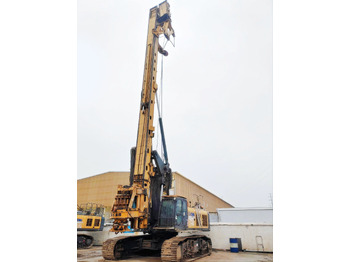

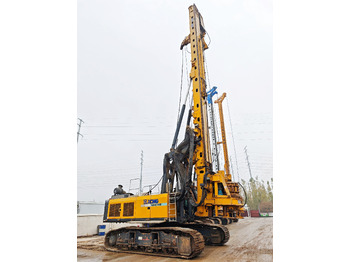

Arrendamiento de XCMG Official XR240E Rotary Drilling Rig Machine Used Diesel Hydraulic Drilling Rig Price
Publicado: 9mes(es) 13d.
Publicado: 9mes(es) 13d.
Publicado: 9mes(es) 13d.
Drill Hole Diameter:2500mm
Drill Hole Depth:94m
Bit Type:Multifunction
Drilling Way:Rotary

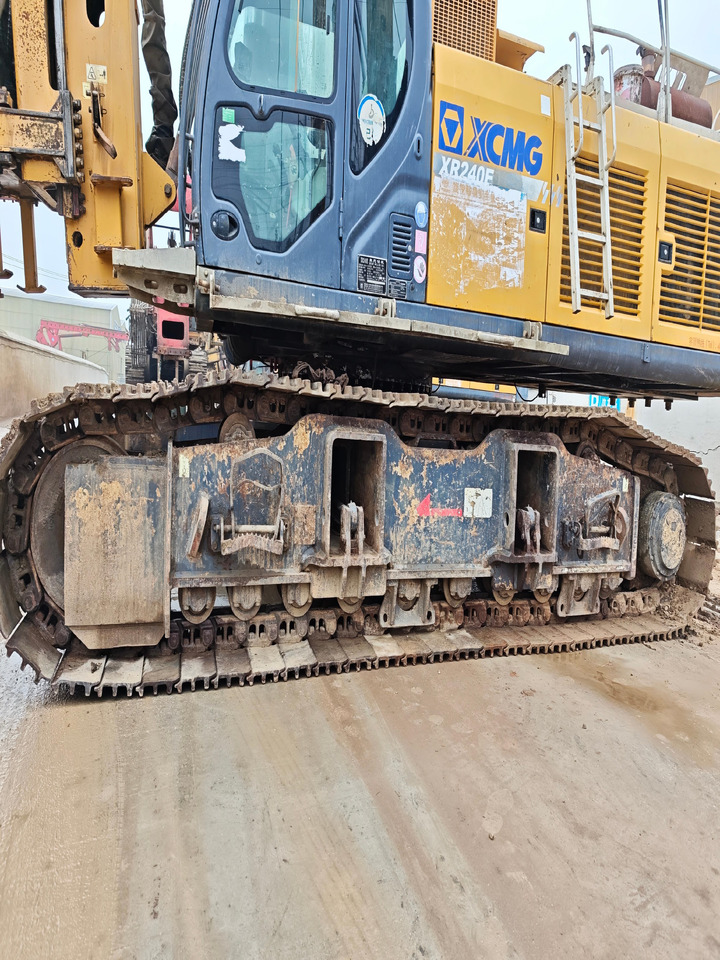

Type:Crawler
Rated Power:270kw
Rotary Speed:7-30r/Min
Working Pressure:35MPa
Max. Output Torque:240kN.M
As a multi-functional machine, XR240E can realize the quick switching of functions such as crowd cylinder, crowd winch to meet more different construction needs.

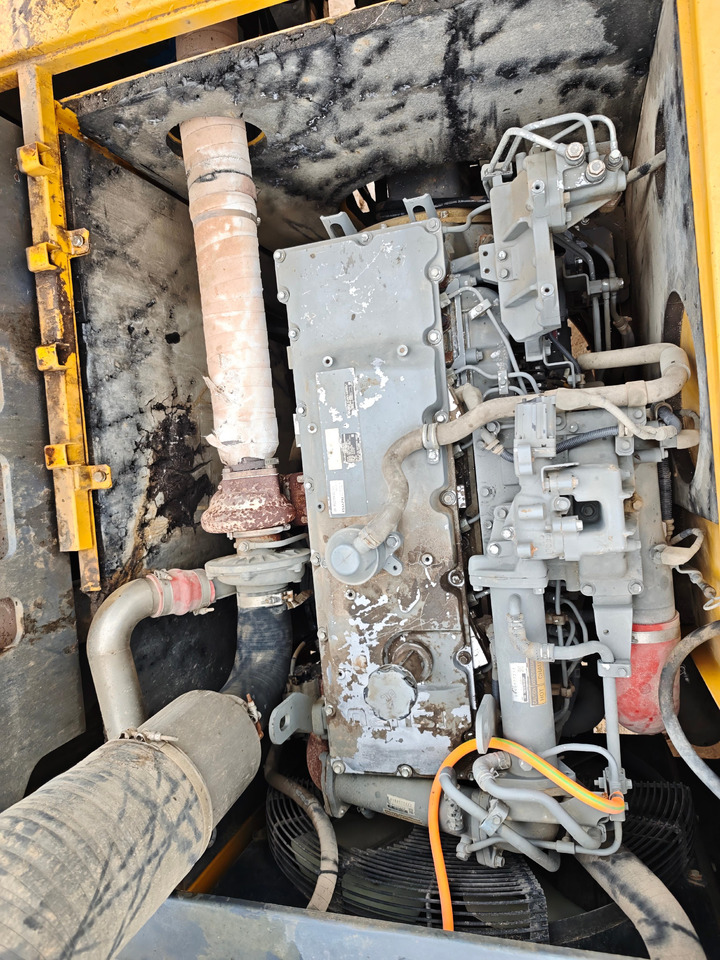

It adopts Isuzu electronically controlled turbocharged engine with lower fuel consumption and convenient service.
The rotary drive and main winch performance is increased by 20%, so the work efficiency is much higher.
The main and auxiliary winches both adopt the single-row rope technology, the service life of wire rope is 2~4 times longer than that of multi-layer rope, which makes the cost lower.
The double jib parallelogram luffing mechanism has a large support angle and al6% increase in support range, which makes the operation more stable.
The hydraulic system adopts negative flow control technology which has a fast response and good handling performance.
High-power temperature-controlled independent hydraulic oil cooler can meet the construction requirements of high temperature areas and adjust the fan speed according to temperature changes to achieve energy saving.
